120V to 277V Circuits: What the Work Covers

The most common question we hear: can you run 277V and 120V circuits in the same conduit? The short answer is yes, with conditions. NEC 300.3(C)(1) permits it when all conductors are insulated for the highest voltage present. That's not a gray area. What is a gray area is whether the electrician you're calling actually knows that distinction or is guessing. All Electric holds CO License #ME.0600978 and we've been working across this voltage range for 9 years. If your facility needs 120V to 277V circuit work done correctly the first time, call us at (720) 951-4619. We back all labor with a 1-year warranty.

The gap between 120V and 277V isn't just a number. It changes breaker ratings, conductor sizing, fixture compatibility, and how your distribution panel is configured. A 277V circuit is a single leg of a 480V wye system, which is why it's standard in commercial lighting: it draws less current for the same wattage load, which means smaller wire and lower operating cost over time. Residential work stays at 120V or 240V. Commercial work often requires both voltages on the same project, with 277V feeding the lighting circuits and 120V feeding receptacles and controls. Scope, existing panel capacity, conduit routing, and load calculations all drive cost on this kind of job. Every job is different. Contact All Electric for an accurate estimate.

Where 277V Circuits Actually Get Used

Most contractors don't advertise this capability. We do it regularly.

277V lighting circuits show up in warehouses, retail spaces, office buildings, parking structures, and light industrial facilities. Fluorescent and LED drivers rated for 277V are standard in commercial construction because the efficiency gain at scale is significant. A 277V LED fixture drawing 2 amps delivers the same output as a 120V version pulling nearly 4.7 amps. Over hundreds of fixtures, that difference in wire size and panel loading matters. We handle the load calculations, panel configuration, and conductor sizing that make these systems work within code. If you're doing a commercial remodel or a tenant build-out, this is often the electrical scope that gets underestimated by contractors who work mostly residential.

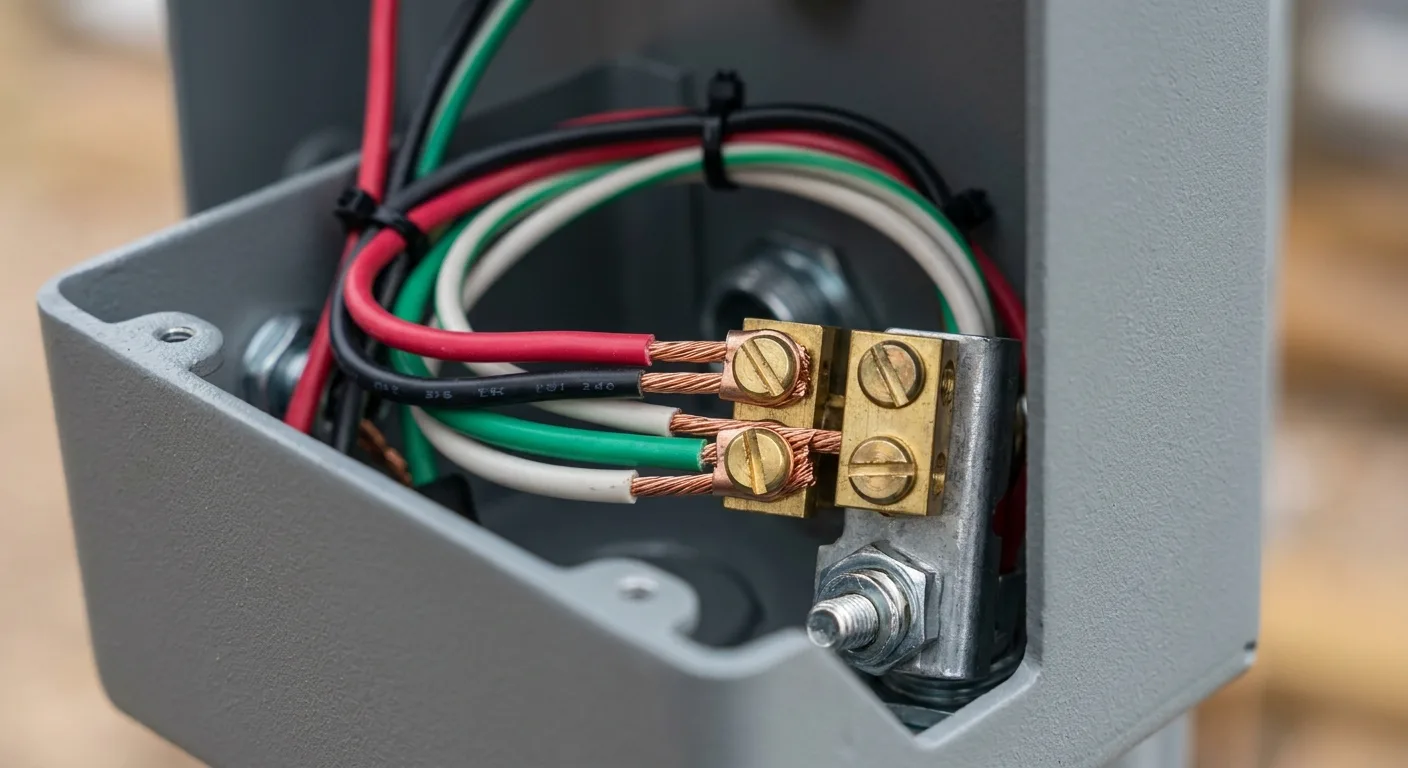

fixture voltage ratings work, professional service in Denver, CO

Code Compliance

Mixing Voltages in Conduit: The Rules

This is where unlicensed work creates real liability.

Running 120V and 277V conductors in the same conduit is legal under NEC 300.3(C)(1), but every conductor must be rated for the highest voltage present. That means your 120V wiring needs insulation rated to at least 300V, and depending on the configuration, you may need 600V-rated conductors throughout. We don't guess at this. We verify the insulation ratings, label the circuits correctly, and document the installation for the permit record. Colorado requires permits on commercial electrical work, and an inspector who finds mixed-voltage conduit without proper conductor ratings will fail the job. A failed inspection means tearing out work that was already paid for. We pull the permit, schedule the inspection, and get it signed off. That's part of what the work costs, and it's not optional.

Our Process

How We Approach a Voltage Conversion Project

Every project starts with a load evaluation.

01
Load Evaluation and Panel Assessment
We assess your existing panel capacity, identify which circuits need to change, and calculate the actual load requirements. A 277V lighting system fed from a 480V/277V wye transformer needs a different panel configuration than a 120/208V system. We confirm the infrastructure before we quote the work.
02
Permit and Design
We pull the required permits and document the circuit layout. This includes conductor sizing per NEC 310, overcurrent protection ratings, and conduit fill calculations. If your project requires a circuit breaker upgrade or a new distribution panel, we handle that in the same scope.
03
Installation, Testing, and Inspection
We install conductors, terminate connections, label every circuit, and test for proper voltage and polarity before energizing. We schedule the inspection and stay available to address any inspector questions. You get documentation of the completed, permitted work.

What a 277V Fixture Needs: Compatibility Facts

A 120V fixture on a 277V circuit will fail immediately. This isn't complicated, but it matters.

Fixture Voltage Ratings

Every fixture and driver must be rated for the supply voltage. 277V-rated equipment is clearly labeled. 120V-only equipment on a 277V circuit is a fire risk, not just a code violation.

Ballast vs. Driver Considerations

Legacy fluorescent systems used magnetic or electronic ballasts rated for specific voltages. LED retrofits require LED drivers. We verify the replacement driver matches the circuit voltage before any fixture goes in.

Step-Up Transformer Applications

When 277V is needed but only 120V supply exists, a step-up transformer bridges the gap. The transformer must be properly sized for the connected load and fused correctly at both primary and secondary. We size and install these to NEC requirements.

Panel and Breaker Compatibility

A 277V breaker operates on a 480V wye distribution system. You cannot use a 277V breaker on a 120V panel. The panel, transformer, and breaker ratings must all match. Mismatched equipment won't just fail inspection; it creates real safety hazards.

Why homeowners trust us

Credentials Behind Every 277V Job We Do

Licensed, insured, and backed by a 1-year labor warranty on every installation.

All Electric carries CO License #ME.0600978, qualified by a Master Electrician. We're fully insured, and all labor carries a 1-year warranty. Across 468 Google reviews we hold a 4.9-star average. That review count reflects consistent work across residential and commercial voltage ranges, not just basic outlet and fixture calls. Financing is available for larger commercial circuit projects. If you need troubleshooting on an existing system or a complete 277V lighting circuit installation, we can book an appointment online or talk through the scope over the phone.

Owner-operated

Daniel Vargas

Family-owned · Denver Local

4.9 · 468 Google reviews

CO License #ME.0600978: Qualified by Master Electrician
Fully insured: Every job, every voltage range
1-year labor warranty: On all circuit work we perform
4.9 stars, 468 Google reviews: Verified, not inflated

Straight from Google

What Our Customers Say actually check

4.9468 verified Google reviews

Got the job done well, pleasant to work with.

Brian NicholsSep 2026 · Google

All Electric is the best! Knowledgeable in fair and troubleshoot till they get the job done, if needed. Highly recommend 🙌🏽

gina dSep 2026 · Google

Fantastic service. They showed up, assisted in the repairs, found the underlying issues and fixed them and then explained what those issues were in a manner that I could understand. Top service, as always.

Sean FrohlingAug 2026 · Google

Same day service! Was here in 3 hours. Very honest and charge was kept at the minimum. Polite service as well.

Fred LudlowAug 2026 · Google

Very responsive. Easy to work with. Would definitely recommend to friends and family.

BritneyAug 2026 · Google

Electrician came out the next day after calling to install two light fixtures. Minimal issues and got them both installed successfully even though we have an old home. Pricing was reasonable to me. I will definitely be using them again for any similar needs!

Jillian L. CallaghanAug 2026 · Google

Awesome service. Quick prompt and very professional and knows the business. Daniel Vargas was the Master Tech. Accessed the problem and was quick to diagnose! Two faulty breakers. Highly recommend.

Michelle BakerAug 2026 · Google

Daniel was great - solution-oriented, super-responsive, knowledgeable and really nice to work with - I will look to Daniel aand All Electric for future needs - thanks!

Travis BoganAug 2026 · Google

Read all 468 reviews

Common Questions About 120V to 277V Circuit Work

Can I run 277V and 120V circuits in the same conduit?

Yes, under NEC 300.3(C)(1), mixed voltages are permitted in the same conduit as long as every conductor is insulated for the highest voltage present. In practice, that means 120V conductors in a shared 277V conduit must carry insulation rated to at least 300V, and full conductor insulation ratings must be verified against the system voltage before installation. This is not a DIY judgment call. Get it documented and inspected.

Will a 120V fixture work on a 277V circuit?

No. A 120V fixture connected to a 277V circuit will fail immediately. The driver or ballast will burn out within seconds of energization. Depending on the fixture design, it can arc. Every fixture and driver must carry an explicit voltage rating that matches the supply circuit. Before any commercial LED retrofit, verify the driver voltage rating, not just the wattage.

What size step-up transformer do I need to go from 120V to 277V?

Transformer sizing depends on the total connected load in VA (volt-amps), not just wattage. Add up the nameplate VA ratings for every fixture or device the transformer will feed, then size the transformer to at least 125% of that total to account for inrush current. Primary and secondary overcurrent protection must also be correctly sized per NEC 450.3. We size and install step-up transformers as part of commercial lighting circuit work.

Can you use a 277V breaker on a 120V panel?

No. A 277V breaker is rated for use in a 480V/277V wye distribution system. It is not compatible with a 120/240V residential or light commercial panel. The voltage rating on a breaker defines the system it can safely interrupt. Installing a 277V breaker in a 120V panel won't provide correct fault interruption and is a code violation. Panel, transformer, and breaker ratings must all match the distribution system voltage.

What's involved in converting a commercial lighting system from 120V to 277V?

A voltage conversion project typically involves upgrading or adding a 480V/277V distribution panel or transformer, replacing all fixtures and drivers with 277V-rated equipment, re-pulling conductors sized for the new voltage and load, and obtaining the required electrical permit. Load calculations drive the scope. We evaluate the existing panel capacity, identify what needs to change, and pull the permit before any work starts. Every job is different. Contact All Electric for an accurate estimate.

Do 277V lighting circuits require a permit in Colorado?

Yes. Commercial electrical work in Colorado requires permits under the NEC as adopted by the state. That includes new 277V circuit installations, panel upgrades, and transformer installations. Unpermitted commercial electrical work creates liability for the property owner and can complicate insurance claims or future inspections. We pull the permit, schedule the inspection, and get the sign-off as part of every commercial circuit job.
